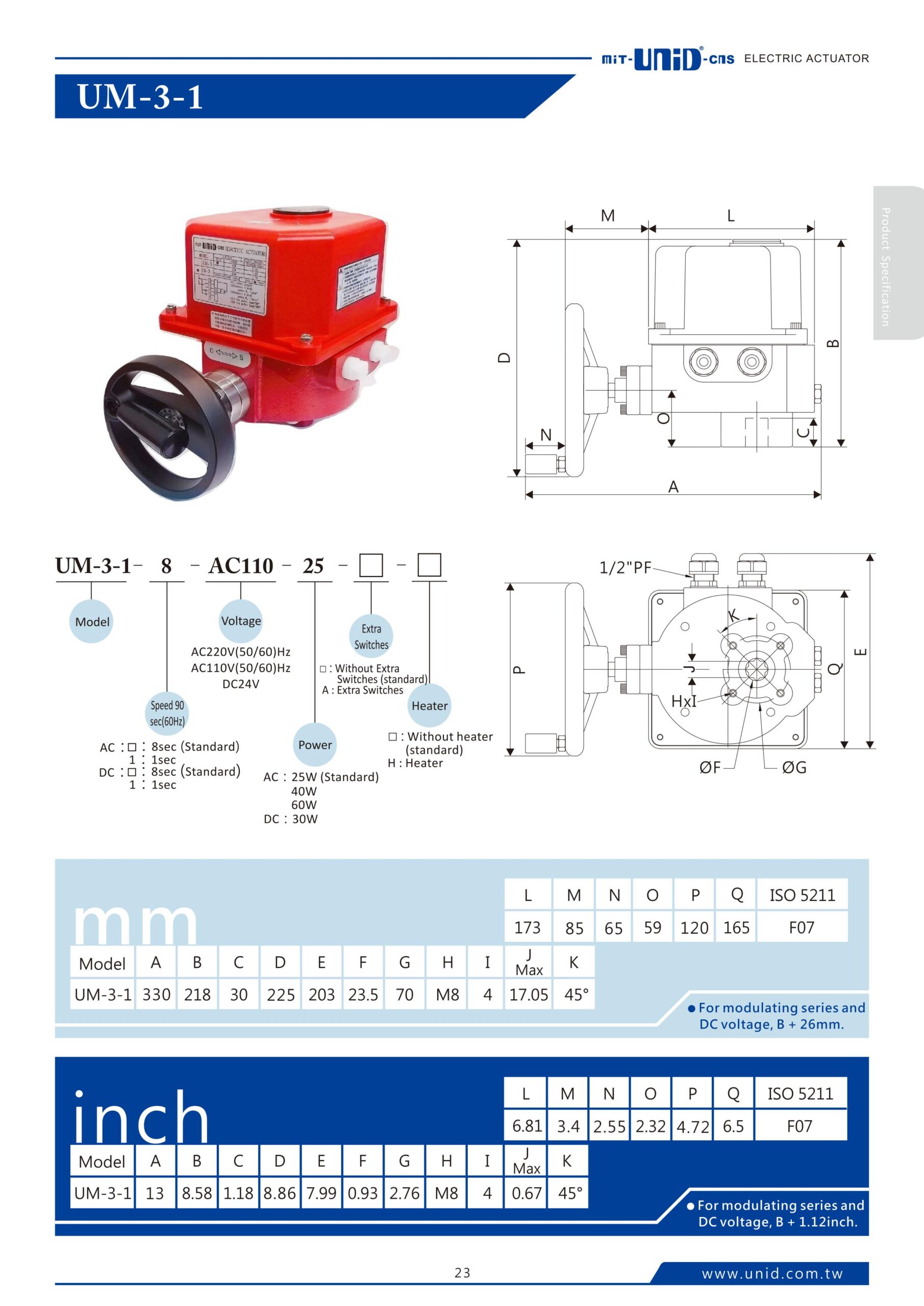

90 Degree Rotary Electric Actuator | UM03-1 | UNI-D

Product ID: UM-3-1

Rated voltage:
AC 100V ~ 120V
AC 200V ~ 240V
DC 24V
(Another special voltage can be customized)
Weight:7.5 kg
(ISO 5211):
F07

Categories: ,
Features:

Product Characteristics

Enclosure:
IP67 rated waterproof and dustproof enclosure. The enclosure is made of Nylon which can resist against heat, acid, and alkali. Aluminum enclosure is optional.

Position Indicator:
All models have a constant mechanical position indicator on the top of
the actuator cover to indicate the position of the valve. It can also
be wired to the control box, and it will show the opening position via
indicator signal.



Model Power Speed 90∘ sec
(60Hz)
Torque(±5%)
kgf-cm
AC110V(60Hz)
Torque(±5%)
kgf-cm
AC220V(60Hz)
No-loadcurrent consumption
AC
100V~120V
AC
200V~240V
UM-3-1 25W 1 294 350 0.6A 0.6A
UM-3-1 25W 8 1486 1562 0.6A 0.6A
UM-3-1 40W 1 369 405 0.9A 0.6A
UM-3-1 60W 1 445 460 1.0A 0.7A



Model Power Speed 90∘ sec Torque(±5%)
kgf-cm
DC24V
No-loadcurrent consumption
DC24V
UM-3-1 30W 1 500 0.5A
UM-3-1 30W 8 1500 0.5A
