Pneumatic angle seat piston valve | ares-atena | Omal

Macro Pneumatic valves
Category Angle seat valves

Subcategory Ares-Atena

Catalogue 3-3 Angle seat valves catalogue



Benefits:

ARES

Ares-Atena pneumatic valve - benefits - ARES

1. Seal placed in the cylinder rather than on the piston.
Longer stroke of the actuator and shutter will be achieved, granting higher flow rate (less flow loss).
Less wear of the seal.

2. Piloting head inserts in 303 S.S.
Increases considerably the corrosion resistance caused by external agents.

3. Starting from DN63 metal piston with CHEMICAL NICKEL coating (10-15 micron).
Reduces the wear of the piston due to the achievement of a greater surface hardness (700-750 HV).

4. Seals pre-loaded by spring.

Guarantee of the recovery of the gap due to the wear caused by the sliding of the shaft avoiding leakage towards the outside part.
Allow to maintain energized the “chevron” seals (V) compensating the dimensional changes even in case of huge temperature excursions.

5. CHEVRON seals (V shape) with 5 seals in the lower part of the spring and 3 seals in the upper part.

It ensures a perfect tightness even after a high number of cycles

6. Rolled shaft.
Less wear of the seals due to the low roughness (0,1 micron Ra) which facilitate the sliding of the shaft.

7. Longer face to face.

Better fluidodynamic with reduction of the turbulences.

8. Oscillating / self-aligning shutter.

It fits perfectly to the valve body ensuring the maximum tightness.

ATEX Certificate.
Installation is allowed in a potential explosive environment.

PED Certificate.
Full compliance with European Safety Standards for Pressure Equipment.

ATENA

Ares-Atena pneumatic valve - benefits - ATENA

1. Seal placed in the cylinder rather than on the piston.
Longer stroke of the actuator and shutter will be achieved, granting higher  flow rate (less flow loss).
Less wear of the seal.

2. Piloting head inserts in 303 S.S.
Increases considerably the corrosion resistance caused by external agents.

3. Seals pre-loaded by spring.
Guarantee of the recovery of the gap due to the wear caused by the sliding of the shaft avoiding leakage towards the outside part.
Allow to maintain energized the “chevron” seals (V) compensating the dimensional changes even in case of huge temperature excursions.

4. CHEVRON seals (V shape) with 5 seals in the lower part of the spring and 3 seals in the upper part.
It ensures a perfect tightness even after a high number of cycles

5. Rolled shaft.
Less wear of the seals due to the low roughness (0,1 micron Ra) which facilitate the sliding of the shaft.

6. Oscillating / self-aligning shutter.
It fits perfectly to the valve body ensuring the maximum tightness.

ATEX Certificate.
Installation is allowed in a potential explosive environment.

GENERAL FEATURES:
Threaded valve ends, as per EN 10226-1 Rp (ex ISO 7/1) for Ares valves; ISO 228/1 for Zeus valves. Other types available on request.
Assembling is possible in all positions: upright, flat or angled.
Range available from 3/8” to 2” in the Double Acting versions, Spring Return N.C. from above and below the plug, Spring Return N.O. from below the plug.
According to 2014/68/EU “PED”.
2014/34/EU ATEX configuration to request at time of order.
The variations in the actioning of the valve, the several combinations and the possibility to intercept the fluid from above or below the plug, originate multiple versions of the automatic valve.
In the table below are indicated the standard versions with the main parameters.
On the basis of the kind of valve and the variations of pressure ΔP that must be intercepted, the necessary control pressure can be individuated, and consequently, the code for the corresponding valve.
On request: versions for vacuum and oxygen service.

CONTROL MEDIA:
Driving media: compressed air, lubricated or dry, gas or neutral media.
Ambient temperature: -10°C to +60°C

OPERATING MEDIA:
Air,water, alcohol, oil, petroleum products, saline solutions, steam, etc. (as long as compatible with A 351 CF8M O CuSn5Zn5Pb5-B).
Pressure from 0 to 16 / 25 bar (steam from 180°C, from 0 to 10 bar) depending on the size and model chosen (see following pages).
Temperature from –10°C to 180°C.
Max. viscosity 600 cst (mm2/s).

Dimensions:

ARES

Ares-Atena pneumatic valve - dimensions - ARES



ARES DIMENSIONS
DN [mm]
G * [inch]
ACTUATOR
A
B
C
D
øE
F
ch. L
H
15 3/8” Ø 50 190 156,5 169 44 70 85 25 12
15 1/2” Ø 50 190 156,5 169 44 70 85 25 15
20 3/4” Ø 50 195 160,5 176 44 70 95 31 16,3
20 3/4” Ø 63 213 178,5 194,4 50,5 84,4 95 31 16,3
25 1” Ø 50 200 164 183 44 70 105 38 19,5
25 1” Ø 63 219 183 202 50,5 84,4 105 38 19,5
25 1” Ø 90 259 223 242 66,2 116,4 105 38 19
32 1”1/4 Ø 50 208 167,5 191 44 70 120 47 19
32 1”1/4 Ø 63 226 185,5 209 50,5 84,4 120 47 19
32 1”1/4 Ø 90 266 225,5 249 66,2 116,4 120 47 18
32 1”1/4 Ø 110 302 261,5 285 77,4 140,6 120 47 18
40 1”1/2 Ø 63 231 191 218 50,5 84,4 130 54 18
40 1”1/2 Ø 90 271 231 258 66,2 116,4 130 54 20
40 1”1/2 Ø 110 307 266 294 77,4 140,6 130 54 20
50 2” Ø 63 245 200 233 50,5 84,4 150 66 20
50 2” Ø 90 285 241 274 66,2 116,4 150 66 20
50 2” Ø 110 321 276 310 77,4 140,6 150 66 20
*On request NPT-threading

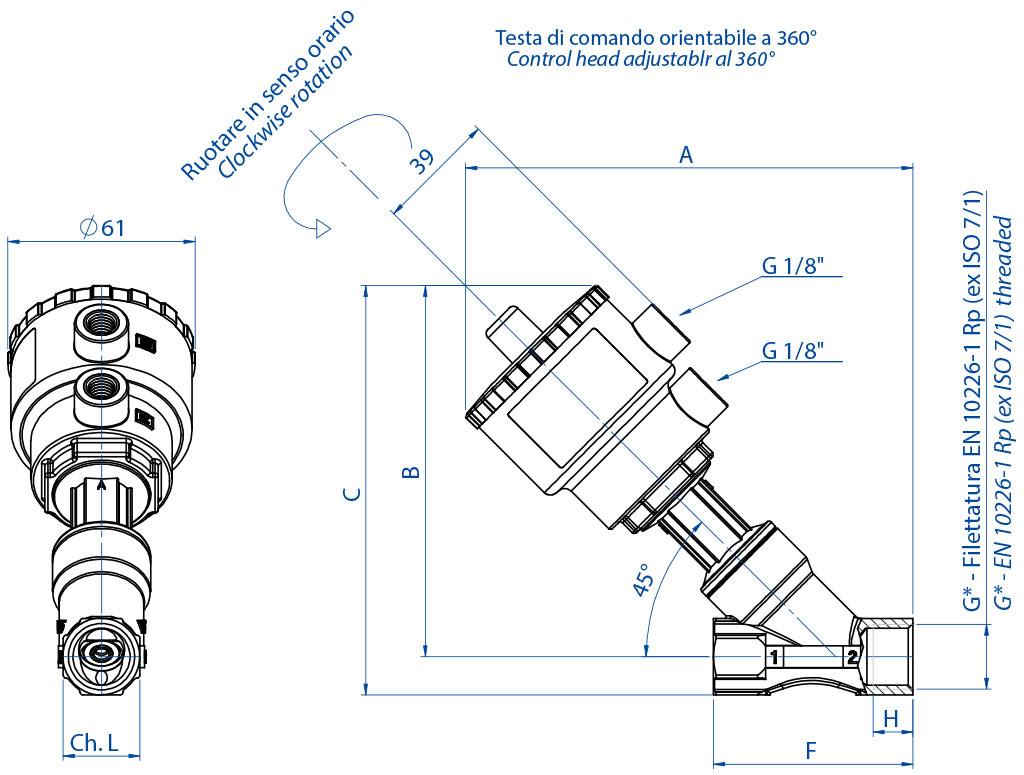

ATENA

Ares-Atena pneumatic valve - dimensions - ATENA



  ATENA DIMENSIONS
  CF8M version
DN [mm]
G *[inch]
ACTUATOR
A
B
C
H
39
ø61
F
ch. L
15 3/8” Ø 40* 146 120,5 133,5 12 39 61 65 25
15 1/2” Ø 40* 146 120,5 133,5 13 39 61 65 25
20 3/4” Ø 40* 153 127,5 141,5 14,3 39 61 75 31
*On request NPT-threading

Materials:

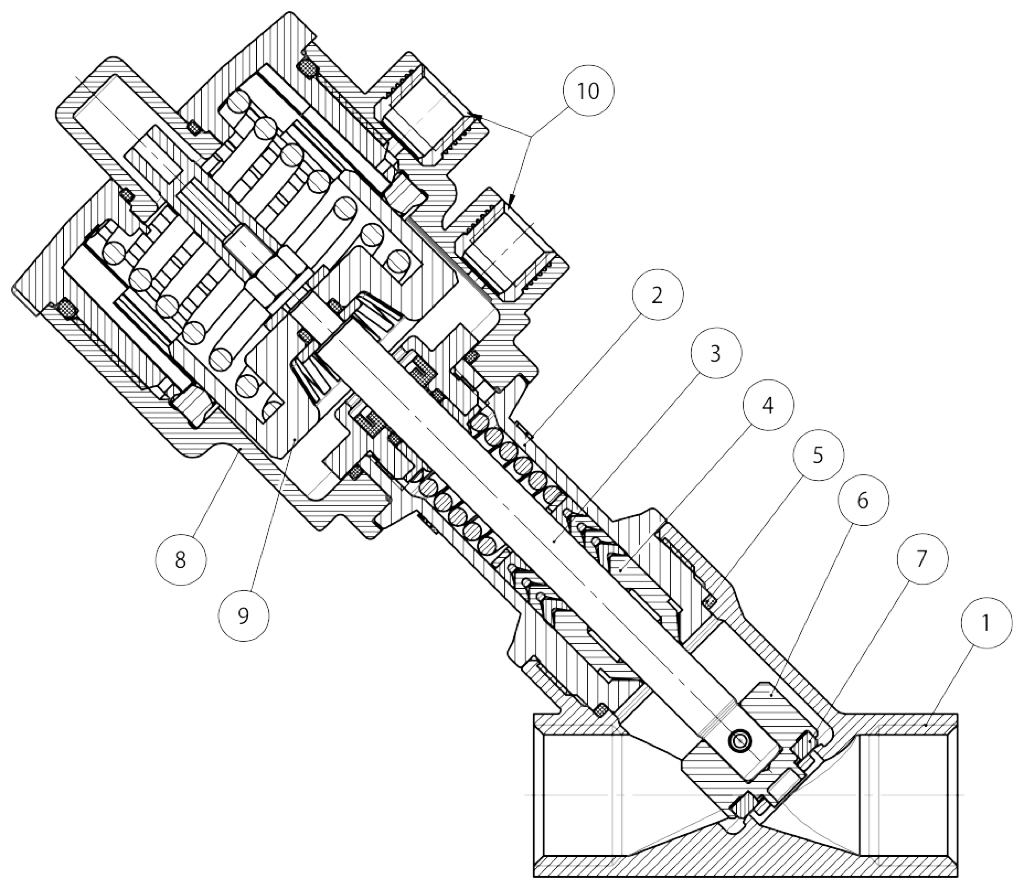

ARES

Ares-Atena pneumatic valve - materials - ARES



ARES MATERIALS
1 Valve body A351-CF8M (316 S.S.)
2 Sleeve A351-CF8M (316 S.S.)
3 Stem 316L S.S.
4* Stem seals PTFE-CF
5*  Body seal GRAPHITE
6 Plug 316L S.S.
7 Plug seal PTFE
8 Actuator cylinder Poliammide PA 66 + GF 30%
9 Piston Brass chem-nickel (PBT + GF 20% head ø40 – ø50)
10 Threading inserts 303 S.S.
* For high purity application are allowable stem seals in virgin PTFE and body seals in Peek



ATENA

Ares-Atena pneumatic valve - materials - ATENA



 ATENA MATERIALS
1 Valve body A351-CF8M (316 S.S.)
2 Sleeve A351-CF8M (316 S.S.)
3 Stem 316L S.S.
4* Stem seals PTFE-CF
5* Body seal GRAPHITE
6 Plug 316L S.S.
7 Plug seal PTFE
8 Actuator cylinder Poliammide PA 66 + GF 30%
9 Piston PBT + GF 20%
10 Threading inserts 303 S.S.
* For high purity application are allowable stem seals in virgin PTFE and body seals in Peek

Diagrams and breakaway torque :

ARES

Ares-Atena pneumatic valve - diagrams and breakaway torque - ARES

ATENA

Ares-Atena pneumatic valve - diagrams and breakaway torque - ATENA
Specifications:

METHODS OF USE

Ares-Atena pneumatic valve - specifications - METHODS OF USE
Accessories:
Ares-Atena pneumatic valve - accessories -

Stroke limiter
It allows to limit the plug run in opening phase, therefore it regulates the flow. Available on all versions. In spring return normally open version it can be used as an emergency control.

Control  A mm Code
∅ 50  25,5 KLJL0016
∅ 63  21,5 KLJL0018
∅ 90  5,2 KLJL0021
∅ 110 5,9 KLJL0023

Not available with ∅ 40 head.

Ares-Atena pneumatic valve - accessories -

Emergency manual override
It allows to open the valve in emergency cases (lack of pilot fluid, machinery damaged, lack of piloting signal). It is available on all normally closed valves.

Control
A
mm
Code
∅ 50 35,8 KLJA0016
∅ 63 35,8 KLJA0018
∅ 90 29,5 KLJA0021
∅ 110 29,5 KLJA0023

Not available with ∅ 40 head

Electro-pilot 3/2 – Solenoid valve 3/2 – 5/2

Ares-Atena pneumatic valve - accessories - Electro-pilot 3/2 - Solenoid valve 3/2 - 5/2

Control solenoid valve
Electro-pilot 3/2 for direct assembling.
Body and reel positionable at 360°.
Standard manual control.
Solenoid valve (NAMUR) sets for selection between function 5/3 or 3/2, achievable by rotating the interconnecting plate to 180°.
Room temperature: from –10°c to +50°C.

Voltage 24 Vac 115 Vac 230 Vac 12 Vdc 24 Vdc
Electro-pilot EP415024 EP415110 EP415220 EP412010 EP412024
Voltage 24 Vac 115 Vac 230 Vac 12 Vdc 24 Vdc
NAMUR Solenoid valve* ER8188A2 ER8188A4 ER8188A5 ER8188C1 ER8188C2
NAMUR interface KBNJ0001

* To be usedy with NAMUR interface only

Ares-Atena pneumatic valve - accessories -

Limit switch box
The control box to check the open/close positions with two mechanical limit switches is suitable for assembling on all the range of valves with actuators ∅50 – ∅63 – ∅90 – ∅110.
The terminals to connect the solenoid valve and the visual indicators provided with led are optional.
Level of protection: IP 65.
Room temperature: from –20° C to +70°C.
Access lead nr. 1 PG11.
Body material: polyamide (cap in trasparent polymethacrylate).

  Control
 A
mm
∅ 50 52,1
∅ 63 47,5
∅ 90 37,7
∅ 110 29,5



AVAILABLE LIMIT SWITCH

Ares-Atena pneumatic valve - accessories -

Inductive limit switches NAMUR EExia
Nominal voltage: 8 Vdc
Consumes: working ≤1mA; resting ≥3 mA
Working temperature: from –20°C to +70°C

Configuration Code
1 Limit switch at the top: open valve KSIN9A0xx
1 Limit switch at the bottom: close valve. KSIN9C0xx
2 Limit switch open and close valve KSIN920xx



Ares-Atena pneumatic valve - accessories -

Proximity limit switches
Nominal voltage: 10÷30 Vdc
Consumes: 15mA;
Working temperature: from –20°C to +70°C

Configuration Code
1 Limit switch at the top: open valve KSI09A0xx
1 Limit switch at the bottom: close valve. KSI09C0xx
2 Limit switch open and close valve KSI0920xx



Ares-Atena pneumatic valve - accessories -

Mechanical limit switches
Limit switch at the top: open valve
Limit switch at the bottom: close valve
Max. capacity: 5A 250 Vac; 1A 250 Vdc

Configuration Code
2 Limit switch KSM0C20xx
xx = Ø  control heads
16 = Ø50
18 = Ø63
21 = Ø90
23 = Ø110
